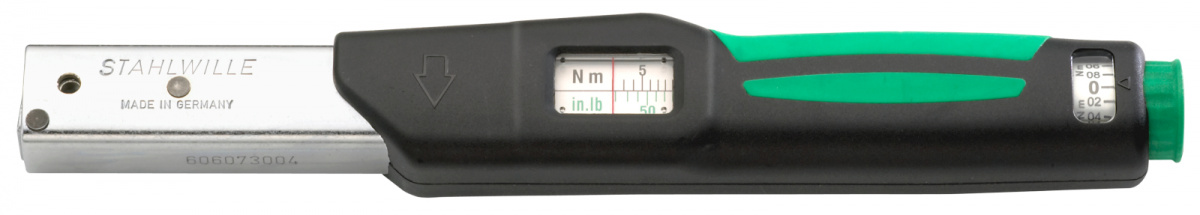

Momentový klíč MANOSKOP® 730NA/2 40-180 INLB 40-180 in·lb 9x12mm
s DPH
10 367,- Kč
bez DPH
8 568,- Kč
Není skladem
Popis produktu
· click-type · fast, accurate setting thanks to QuickSelect quick-action adjuster · dual stop signal · easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales · the measuring element is only under load while force is being applied, no need for manual reset to zero · any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw -does not act on the trigger mechanism and cannot cause damage to it · two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol) · calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly. · with certificate · supplied in textile bag (from size 65) · registered design · mount for interchangeable insert tools · QuickRelease safety lock · can be applied for either clockwise or anticlockwise tightening by turning the inserts over · display deviation value ± 3% (size 2 | a/2 4 %)
Produktové číslo: 730NA/2 40-180 INLB
Výrobce: Stahlwille
Specifikace
Varianty
| Číslo | Skladem | Si ze |

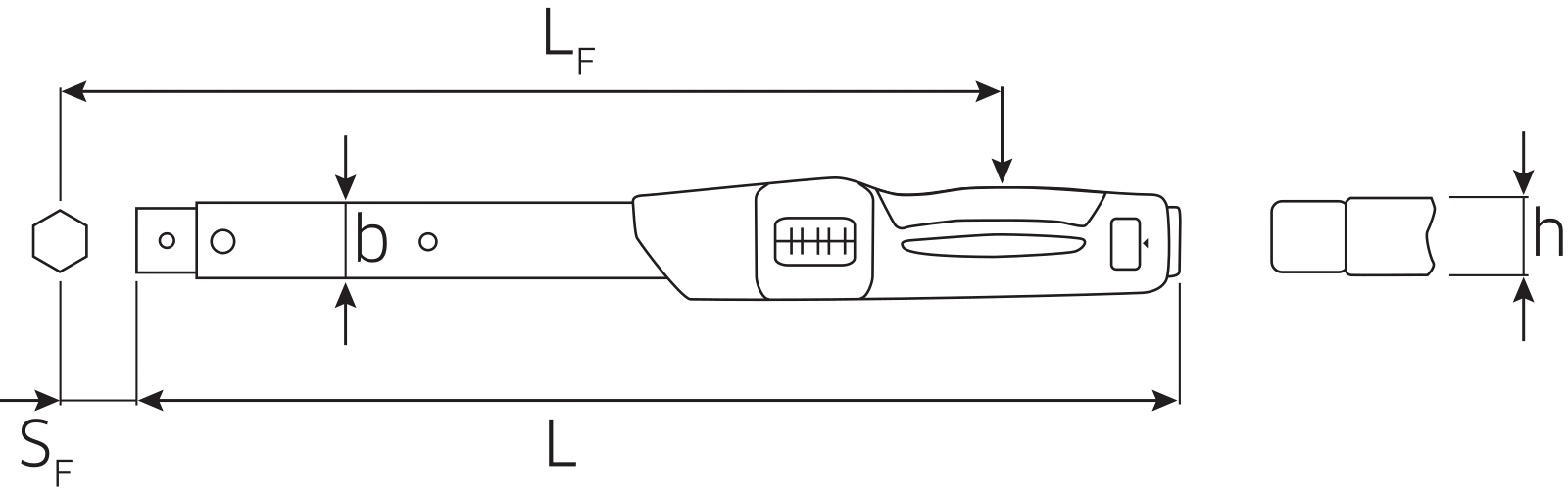

Weight | L (mm) | h | Measuring range [2] | LF | Size tool mount (female square) | Fine scale division | Measuring range [1] | Scale division [E2] | Scale division [E1] | SF | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 730N/20 | 4 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730N/10 | 2 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730N/5 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730N/12 | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730N/40 | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730N/65 | 3 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730N/80 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730N/100 | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730N/2 4-20 NM | 0 | 2 | 737 | 275 | 23 | 28 | 40-180 in·lb | 226 | 9x12 | 0,2 N·m | 4-20 N·m | 10 in·lb | 1 N·m | 17,5 |
|
| 730N II/65 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730NA/5 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730NA/10 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730NA/20 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730NA/40 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
| 730NA/2 40-180 INLB | 0 | a/2 | 737 | 275 | 23 | 28 | 3-15 ft·lb | 226 | 9x12 | 2 in·lb | 40-180 in·lb | 0,5 ft·lb | 10 in·lb | 17,5 |
|
