Popis produktu
Momentový klíč MANOSKOP® Servis" s úchytem pro zástrčné nástroje
Produktové číslo: 730N/100
Výrobce: Stahlwille
Specifikace
Moment
do 1000Nm
Varianty

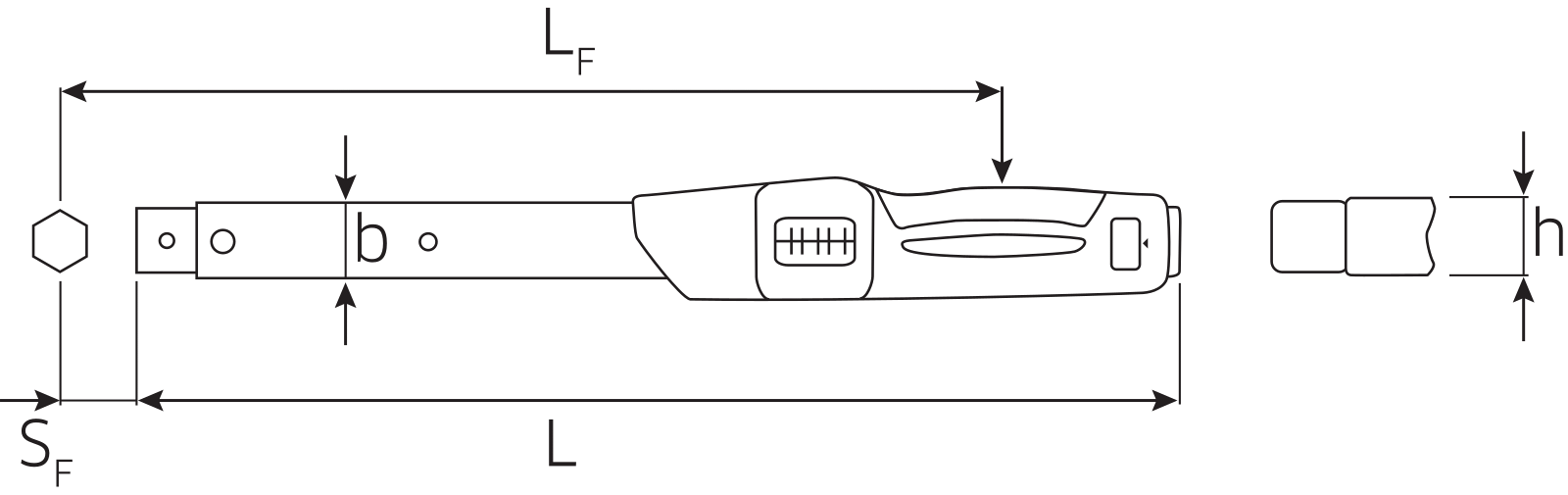

| Číslo | Skladem | Velikost | W |
X |
Jemná stupnice[X | J mm |
b mm |
h mm |
L mm |
LF mm |
SF mm |
R g |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 730N/20 | 4 | 20 | 40-200 N·m | 10 N·m | 1 N·m | [, | 28 | 23 | 467 | 424,5 | 25 | 1264 |
|
| 730N/10 | 2 | 10 | 20-100 N·m | 10 N·m | 0,5 N·m | [; | 28 | 23 | 386 | 336 | 17,5 | 988 |
|
| 730N/5 | 0 | 5 | 10-50 N·m | 5 N·m | 0,25 N·m | [; | 28 | 23 | 330 | 280,5 | 17,5 | 1054 |
|
| 730N/12 | 1 | 12 | 25-130 N·m | 10 N·m | 0,5 N·m | [, | 28 | 23 | 421 | 379 | 25 | 1128 |
|
| 730N/40 | 1 | 40 | 80-400 N·m | 20 N·m | 2 N·m | [, | 28 | 23 | 607 | 564,5 | 25 | 1655 |
|
| 730N/65 | 3 | 65* | 130-650 N·m | 50 N·m | 2,5 N·m | [, | 30,6 | 25,6 | 890 | 848 | 25 | 3231 |
|
| 730N/80 | 0 | 80 | 160-800 N·m | 100 N·m | 5 N·m | [. | 30,6 | 25,6 | 1178 | 1167 | 55 | 4825 |
|
| 730N/100 | 1 | 100 | 200-1000 N·m | 100 N·m | 5 N·m | [. | 30,6 | 25,6 | 1363 | 1352 | 55 | 5000 |
|
| 730N/2 4-20 NM | 0 | - | - | - | - | - | - | - | - | - | - | - |
|
| 730N II/65 | 0 | II/65 | 130-650 N·m | 50 N·m | 2,5 N·m | [. | 30,6 | 25,6 | 911 | 900 | 55 | 3504 |
|
| 730NA/5 | 0 | a/5 | 90-450 in·lb | 50 in·lb | 2,5 in·lb | [; | 28 | 23 | 330 | 280,5 | 17,5 | 831 |
|
| 730NA/10 | 0 | a/10 | 180-900 in·lb | 100 in·lb | 5 in·lb | [; | 28 | 23 | 386 | 336 | 17,5 | 988 |
|
| 730NA/20 | 0 | a/20 | 350-1800 in·lb | 100 in·lb | 10 in·lb | [, | 28 | 23 | 467 | 424,5 | 25 | 1264 |
|
| 730NA/40 | 0 | a/40 | 60-300 ft·lb | 20 ft·lb | 2 ft·lb | [, | 28 | 23 | 607 | 564,5 | 25 | 1655 |
|
| 730NA/2 40-180 INLB | 0 | - | - | - | - | - | - | - | - | - | - | - |
|
