Popis produktu
· click-type · the measuring element is only under load while force is being applied, no need for manual reset to zero · mount for interchangeable insert/shell tools · QuickRelease safety lock (sizes 5-65) · rapid setting thanks to easy-action locking lever in the handle (sizes 5-65) · ergonomically designed, non-slip adjuster with a thumb recess · magnifying glass integrated in the display window · optimised convex handle for strain-free working · dual stop signal · twin scales N·m/ft·lb and N·m/in·lb (sizes 5-80) · on request also available as an N·m-only version without twin scale (sizes 5-65) · can be applied for either clockwise or anticlockwise tightening by turning the inserts over · any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it · calibration using perfectControl® calibrating unit No 7794 or calibration system No 7706. Readjustment does not require disassembly. · certificate in accordance with DIN EN ISO 6789-2:2017 · display deviation value ± 4%

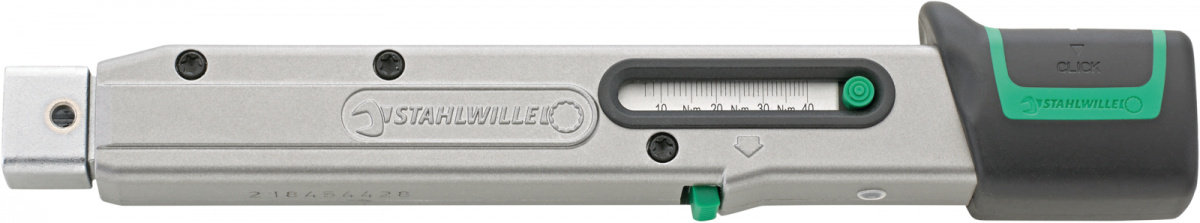

Produktové číslo: 730/4 QUICK
Výrobce: Stahlwille
Specifikace
Varianty
Číslo | Skladem | Si ze |

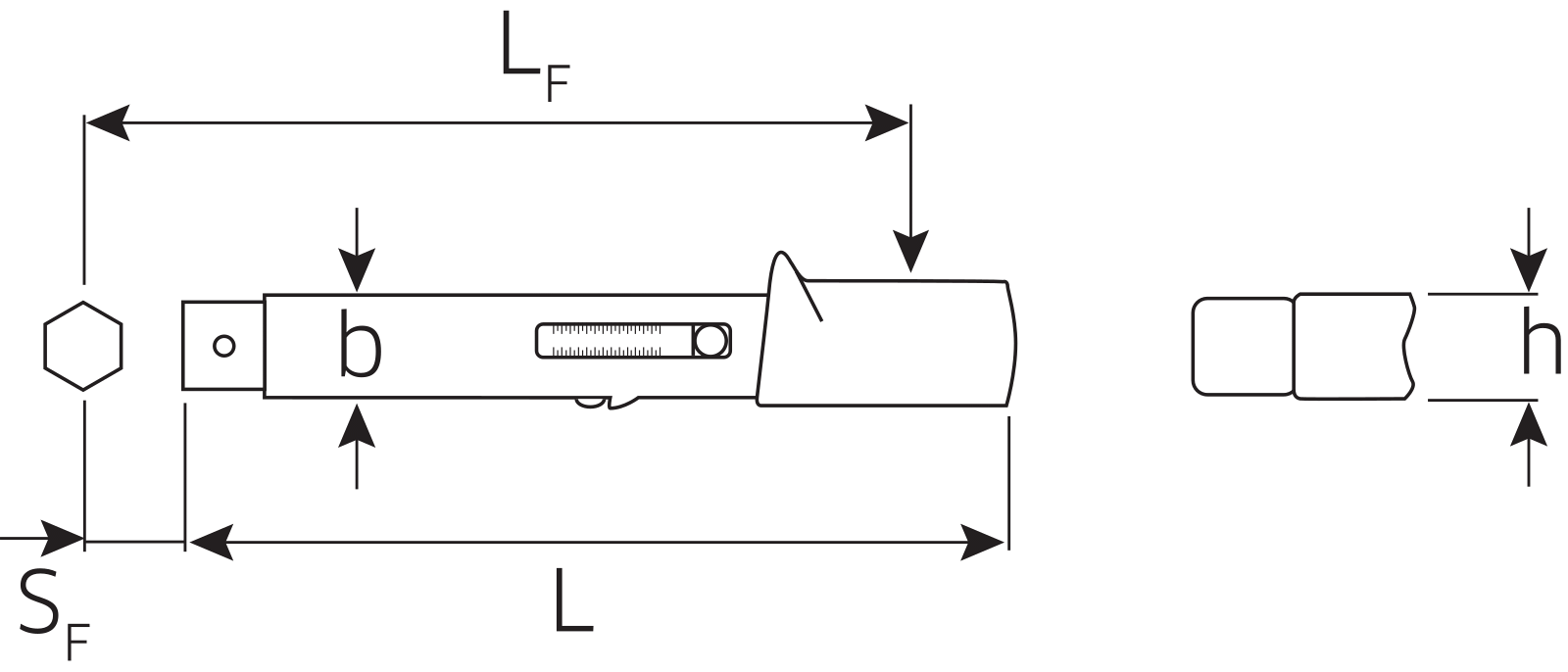

Weight | L (mm) | h | LF | Size tool mount (female square) | Measuring range [1] | Scale division [E1] | SF | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
730/20 QUICK | 2 | - | - | - | - | - | - | - | - | - | - |
|
730/2 QUICK | 3 | 2 | 315 | 179 | 23,6 | 27,5 | 157,2 | 9x12 | 4-20 N·m | 0,5 N·m | 17,5 |
|
730/4 QUICK | 2 | 4 | 395 | 223 | 23,6 | 27,5 | 200,8 | 9x12 | 8-40 N·m | 1 N·m | 17,5 |
|
730/5 QUICK | 5 | - | - | - | - | - | - | - | - | - | - |
|
730/10 QUICK | 1 | - | - | - | - | - | - | - | - | - | - |
|
730/12 QUICK | 0 | - | - | - | - | - | - | - | - | - | - |
|
730/40 QUICK | 2 | - | - | - | - | - | - | - | - | - | - |
|
730/65 QUICK | 0 | - | - | - | - | - | - | - | - | - | - |
|
730II/65 QUICK | 0 | - | - | - | - | - | - | - | - | - | - |
|
