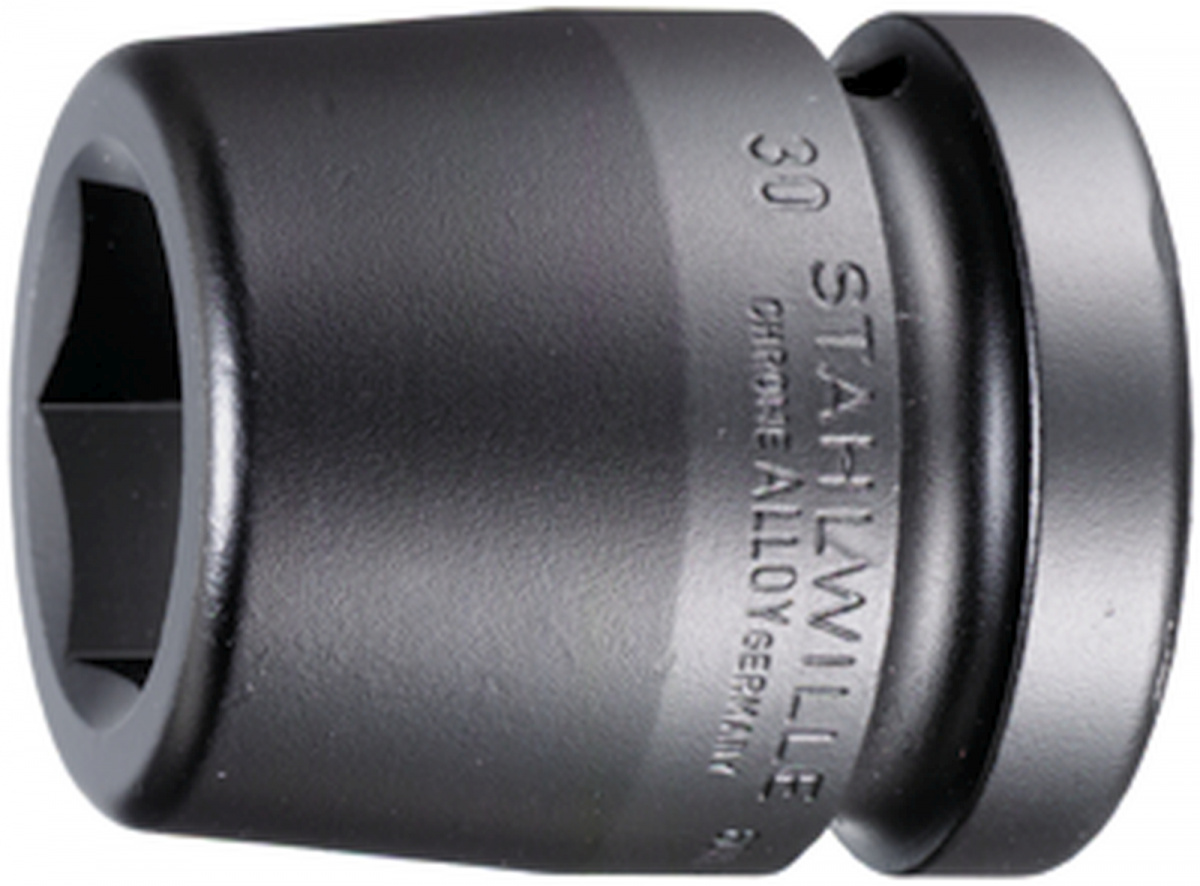

Rázová nástrčná hlavice IMPACT 30mm 62mm
s DPH
1 525,- Kč
bez DPH
1 260,- Kč
Není skladem
-+
Popis produktu
IMPACT nástrčná hlavice 1" [a pohon, DIN 3129/ISO 1711-2, pro strojní roubováky, chromem legovaná ocel, černěná.
Produktové číslo: 60IMP 30
Výrobce: Stahlwille
Specifikace
Varianty

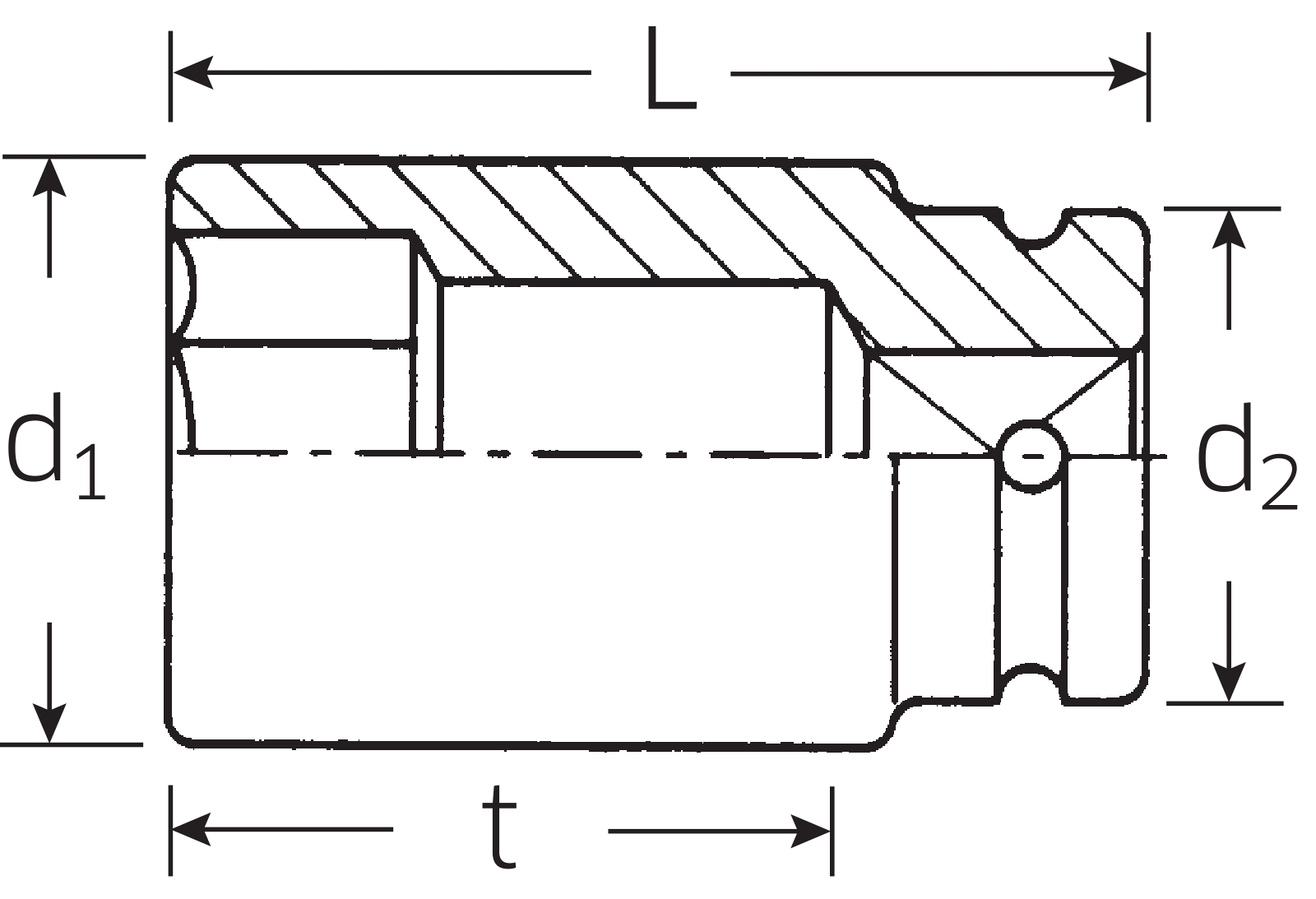

Číslo | Skladem | A mm |
d1 mm |
d2 mm |
L mm |
t mm |
R g |
S |
|
---|---|---|---|---|---|---|---|---|---|
60IMP 24 | 0 | 24 | 41,5 | 54 | 58 | 28 | 638 | 2 |
|
60IMP 27 | 0 | 27 | 45 | 54 | 60 | 30 | 654 | 2 |
|
60IMP 30 | 0 | 30 | 49 | 54 | 62 | 32 | 688 | 2 |
|
60IMP 32 | 0 | 32 | 51,5 | 54 | 63 | 32 | 694 | 2 |
|
60IMP 33 | 0 | 33 | 52,5 | 54 | 63 | 31,5 | 692 | 2 |
|
60IMP 36 | 0 | 36 | 56,5 | 54 | 67 | 34,5 | 754 | 2 |
|
60IMP 38 | 0 | 38 | 59 | 54 | 70 | 37 | 836 | 2 |
|
60IMP 41 | 0 | 41 | 63 | 54 | 70 | 36,5 | 892 | 2 |
|
60IMP 42 | 0 | 42 | 64,5 | 54 | 73 | 39 | 970 | 1 |
|
60IMP 46 | 0 | 46 | 69,5 | 54 | 76 | 41 | 1106 | 1 |
|
60IMP 50 | 0 | 50 | 74,5 | 54 | 82 | 52 | 1362 | 1 |
|
60IMP 55 | 0 | 55 | 81 | 54 | 87 | 57 | 1669 | 1 |
|
60IMP 60 | 1 | 60 | 87 | 54 | 91 | 61 | 1960 | 1 |
|
60IMP 65 | 0 | 65 | 92 | 54 | 85 | 55 | 1678 | 1 |
|
60 IMP 70 | 0 | 70 | 96 | 54 | 88 | 58 | 1803 | 1 |
|
60 IMP 75 | 0 | 75 | 100 | 86 | 92 | 62 | 2674 | 1 |
|
60 IMP 80 | 0 | 80 | 105 | 86 | 97 | 67 | 2949 | 1 |
|
