Popis produktu

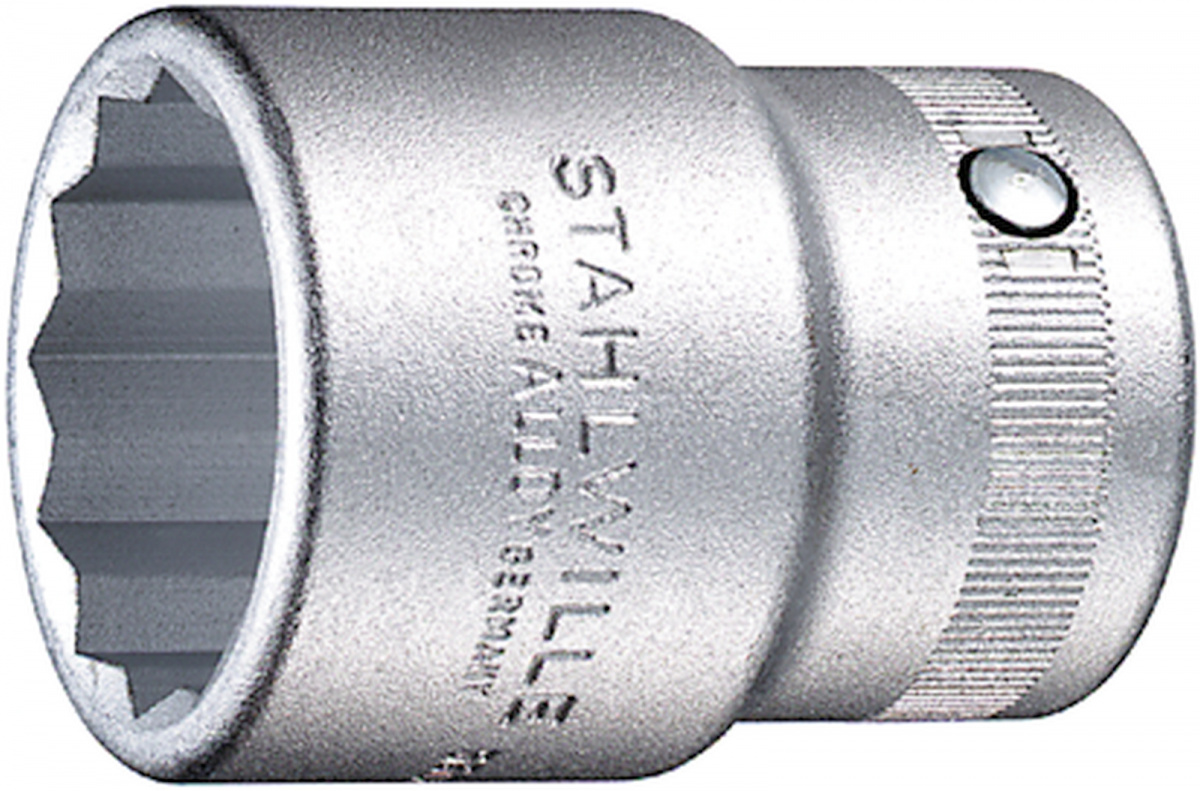

Nástrčná hlavice SAE AS 954-E (zkuební hodnoty), ASME B 107.1, AS- pohon a HPQ®-ocel vysoké kvality, do rozměru klíča 1 1/2", chromovaná.
Produktové číslo: 55A 1 13/16
Výrobce: Stahlwille
Specifikace
Varianty
| Číslo | Skladem | A " |
d1 mm |
d2 mm |
d3 mm |
L mm |
t1 mm |
t2 mm |
R g |
S |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 55A 3/4 | 0 | 3/4 | 28,5 | 34,7 | 18,6 | 50 | 16 | 26 | 176 | 2 |
|
| 55 A 13/16 | 0 | 13/16 | 31 | 34,7 | 19,4 | 51 | 16,5 | 25,1 | 190 | 2 |
|
| 55A 7/8 | 0 | 7/8 | 33 | 34,7 | 21 | 51 | 18 | 24,5 | 240 | 2 |
|
| 55A 15/16 | 0 | 15/16 | 34 | 34,7 | 22,5 | 51 | 18,5 | 24,2 | 248 | 2 |
|
| 55A 1 | 0 | 1 | 37 | 38 | 24 | 52 | 20 | 24,8 | 251 | 2 |
|
| 55A 1 1/16 | 0 | 1 1/16 | 38,5 | 38 | 26 | 54 | 20 | 26,2 | 265 | 2 |
|
| 55A 1 1/8 | 0 | 1 1/8 | 41 | 38 | 27,5 | 57 | 20 | 32,5 | 297 | 2 |
|
| 55A 1 1/4 | 0 | 1 1/4 | 44,5 | 38 | 30,5 | 58 | 22 | 32,6 | 339 | 2 |
|
| 55 A 1 5/16 | 0 | 1 5/16 | 46,5 | 40 | 32,1 | 59 | 24 | 33,1 | 368 | 2 |
|
| 55A 1 3/8 | 0 | 1 3/8 | 48,5 | 40 | 33,7 | 59 | 24 | 32,7 | 375 | 2 |
|
| 55A 1 7/16 | 0 | 1 7/16 | 50 | 40 | 35,3 | 60 | 27 | 33,2 | 395 | 2 |
|
| 55A 1 1/2 | 0 | 1 1/2 | 52 | 40,5 | 36,8 | 64 | 30 | 36,8 | 415 | 2 |
|
| 55A 1 5/8 | 0 | 1 5/8 | 56 | 40 | 33 | 67 | 30 | 37,5 | 469 | 1 |
|
| 55A 1 11/16 | 0 | 1 11/16 | 58 | 40 | 33 | 70 | 32 | 40,5 | 524 | 1 |
|
| 55A 1 3/4 | 0 | 1 3/4 | 59,5 | 40 | 33 | 70 | 32 | 40,5 | 524 | 1 |
|
| 55A 1 13/16 | 0 | 1 13/16 | 61,5 | 40 | 33 | 73 | 34 | 43,5 | 585 | 1 |
|
| 55A 1 7/8 | 0 | 1 7/8 | 63,5 | 40 | 33 | 76 | 34 | 45 | 651 | 1 |
|
| 55A 2 | 0 | 2 | 67 | 40 | 33 | 80 | 34 | 48,5 | 757 | 1 |
|
