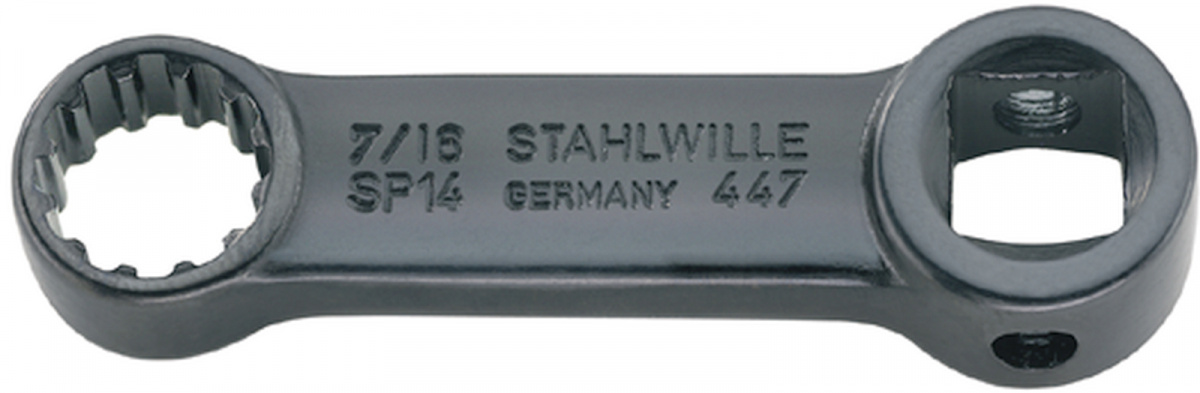

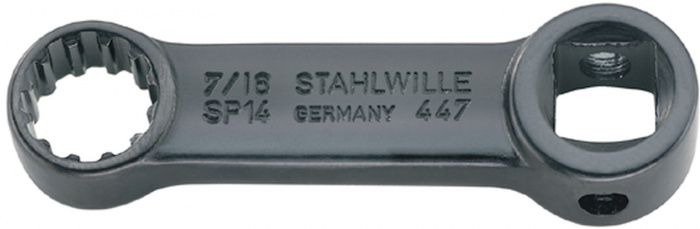

Nástavec SplineDrive ve 14 7/16" vnitřní čtyřhran 3/8"
s DPH
1 565,- Kč
bez DPH
1 294,- Kč
Není skladem
Popis produktu
Adaptér Spline-Drive Pozor! Změněné nastavené hodnoty momentového klíče . MS-33787, MIL-W8982, HPQ®- ocel vysoké kvality, černěná.
Produktové číslo: 447A SP 14 = 7/16
Výrobce: Stahlwille
Specifikace
Varianty

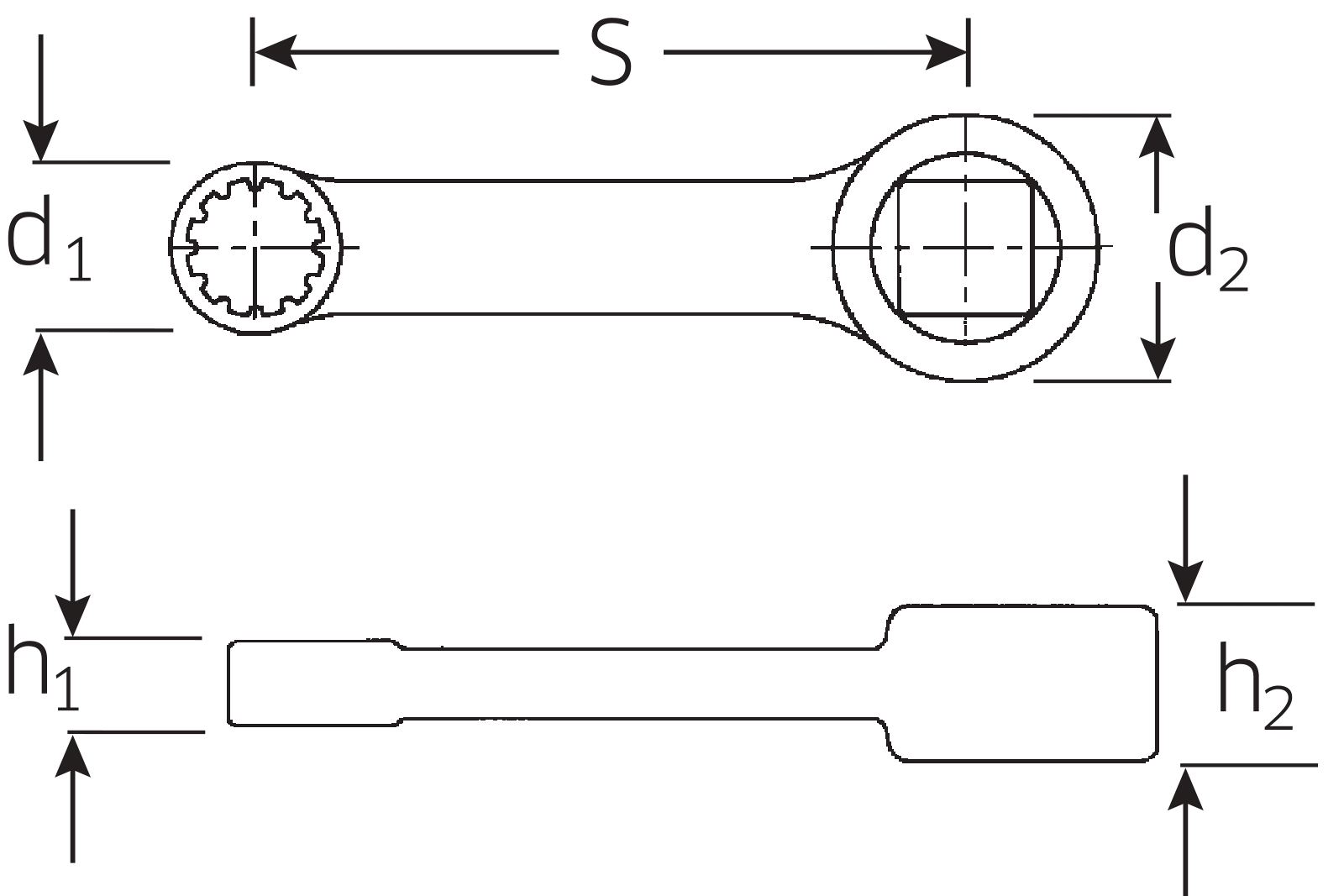

| Číslo | Skladem | DrákaVelikost | A " |
a " |
d1 mm |
d2 mm |
h1 mm |
h2 mm |
S mm |
S |
R g |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 447A SP 12=3/8 | 0 | 12 | 3/8 | 3/8 | 14,9 | 19 | 8 | 11 | 50,8 | 1 | 40 |
|
| 447A SP 8 = 1/4 | 0 | 8 | 1/4 | 3/8 | 10,4 | 19 | 6 | 11 | 50,8 | 1 | 27 |
|
| 447A SP 7 = 7/32 | 0 | 7 | 7/32 | 3/8 | 9,4 | 19 | 6 | 11 | 50,8 | 1 | 38 |
|
| 447A SP 9 = 9/32 | 0 | 9 | 9/32 | 3/8 | 11,5 | 19 | 6 | 11 | 50,8 | 1 | 29 |
|
| 447A SP 10 = 5/16 | 0 | 10 | 5/16 | 3/8 | 12,4 | 19 | 6 | 11 | 50,8 | 1 | 29 |
|
| 447A SP 14 = 7/16 | 0 | 14 | 7/16 | 3/8 | 17 | 19 | 9,2 | 11 | 50,8 | 1 | 39 |
|
| 447A SP 16 = 1/2 | 0 | 16 | 1/2 | 3/8 | 19 | 19 | 9,2 | 11 | 50,8 | 1 | 59 |
|
| 447A SP 18 = 9/16 | 0 | 18 | 9/16 | 3/8 | 21 | 19 | 9,2 | 11 | 50,8 | 1 | 55 |
|
| 447A SP 20 = 5/8 | 0 | 20 | 5/8 | 3/8 | 23 | 19 | 12 | 11 | 50,8 | 1 | 74 |
|
