Popis produktu

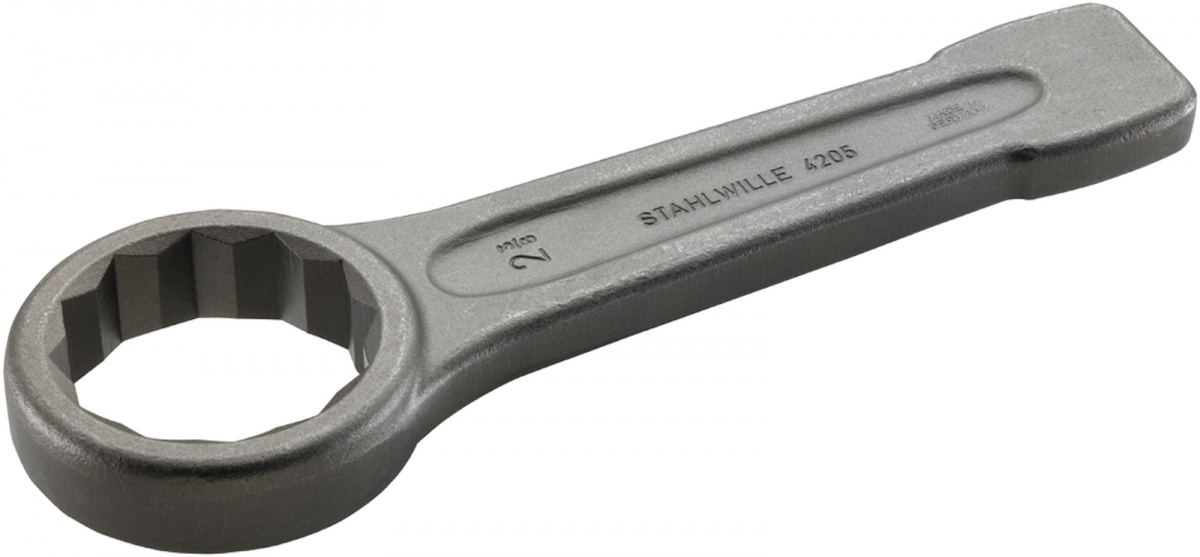

Úderový očkový klíč DIN 7444, speciální ocel, barva ocelově edá.
Produktové číslo: 4205 24
Výrobce: Stahlwille
Specifikace
Varianty

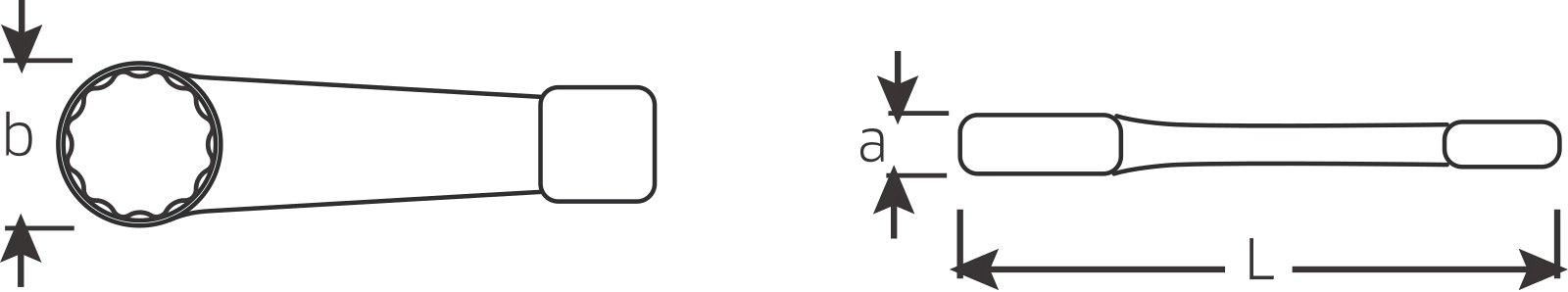

| Číslo | Skladem | A mm |
L mm |
b mm |
a mm |
S |
R g |
|
|---|---|---|---|---|---|---|---|---|
| 4205 24 | 0 | 24 | 160 | 42,5 | 15 | 1 | 200 |
|
| 4205 26 | 0 | 26 | 160 | 42,5 | 15 | 1 | 200 |
|
| 4205 27 | 0 | 27 | 180 | 46 | 16 | 1 | 260 |
|
| 4205 28 | 0 | 28 | 180 | 47 | 15,5 | 1 | 275 |
|
| 4205 30 | 1 | 30 | 190 | 51,5 | 16,5 | 1 | 365 |
|
| 4205 32 | 0 | 32 | 195 | 53 | 16,5 | 1 | 353 |
|
| 4205 33 | 0 | 33 | 195 | 53 | 16,5 | 1 | 350 |
|
| 4205 36 | 0 | 36 | 205 | 60 | 19,5 | 1 | 505 |
|
| 4205 37 | 0 | 37 | 205 | 60 | 19,5 | 1 | 500 |
|
| 4205 38 | 0 | 38 | 205 | 60 | 19,5 | 1 | 500 |
|
| 4205 41 | 0 | 41 | 225 | 66 | 20,5 | 1 | 715 |
|
| 4205 42 | 0 | 42 | 225 | 66 | 20,5 | 1 | 671 |
|
| 4205 46 | 0 | 46 | 240 | 75 | 22,5 | 1 | 915 |
|
| 4205 47 | 0 | 47 | 240 | 75 | 22,5 | 1 | 975 |
|
| 4205 48 | 0 | 48 | 240 | 75 | 22,5 | 1 | 920 |
|
| 4205 50 | 0 | 50 | 250 | 80 | 23,5 | 1 | 1120 |
|
| 4205 52 | 0 | 52 | 250 | 80 | 23,5 | 1 | 1075 |
|
| 4205 55 | 0 | 55 | 270 | 87,5 | 25 | 1 | 1375 |
|
| 4205 56 | 0 | 56 | 270 | 87,5 | 25 | 1 | 1320 |
|
| 4205 60 | 0 | 60 | 270 | 93,5 | 26 | 1 | 1565 |
|
| 4205 64 | 0 | 64 | 290 | 101 | 29 | 1 | 2300 |
|
| 4205 65 | 1 | 65 | 290 | 101 | 29 | 1 | 2100 |
|
| 4205 70 | 0 | 70 | 320 | 109,5 | 33 | 1 | 3000 |
|
| 4205 75 | 0 | 75 | 325 | 114,5 | 34 | 1 | 2780 |
|
| 4205 80 | 0 | 80 | 345 | 126 | 35 | 1 | 4100 |
|
| 4205 85 | 0 | 85 | 360 | 129 | 37 | 1 | 3835 |
|
| 4205 90 | 0 | 90 | 400 | 152 | 41,5 | 1 | 5180 |
|
| 4205 95 | 0 | 95 | 400 | 152 | 41,5 | 1 | 4900 |
|
| 4205 100 | 0 | 100 | 400 | 152 | 41,5 | 1 | 6560 |
|
| 4205 105 | 0 | 105 | 435 | 172 | 47,5 | 1 | 6300 |
|
| 4205 110 | 0 | 110 | 435 | 172 | 47,5 | 1 | 7960 |
|
| 4205 115 | 0 | 115 | 435 | 172 | 47,5 | 1 | 7495 |
|
| 4205 120 | 0 | 120 | 480 | 182 | 54 | 1 | 9900 |
|
| 4205 130 | 0 | 130 | 520 | 202 | 58 | 1 | 12640 |
|
| 4205 135 | 0 | 135 | 520 | 202 | 58 | 1 | 12120 |
|
| 4205 145 | 0 | 145 | 580 | 228 | 64 | 1 | 18250 |
|
| 4205 160 | 0 | 160 | 580 | 228 | 64 | 1 | 18800 |
|
| 4205 165 | 0 | 165 | 650 | 265 | 70 | 1 | 28500 |
|
| 4205 170 | 0 | 170 | 650 | 265 | 70 | 1 | 27500 |
|
| 4205 175 | 0 | 175 | 650 | 265 | 70 | 1 | 27750 |
|
| 4205 180 | 0 | 180 | 650 | 265 | 70 | 1 | 26340 |
|
| 4205 210 | 0 | 210 | 750 | 320 | 80 | 1 | 41000 |
|
