Úderový očkoplochý klíč 100mm 485mm
s DPH
16 229,- Kč
bez DPH
13 412,- Kč
Není skladem
Popis produktu

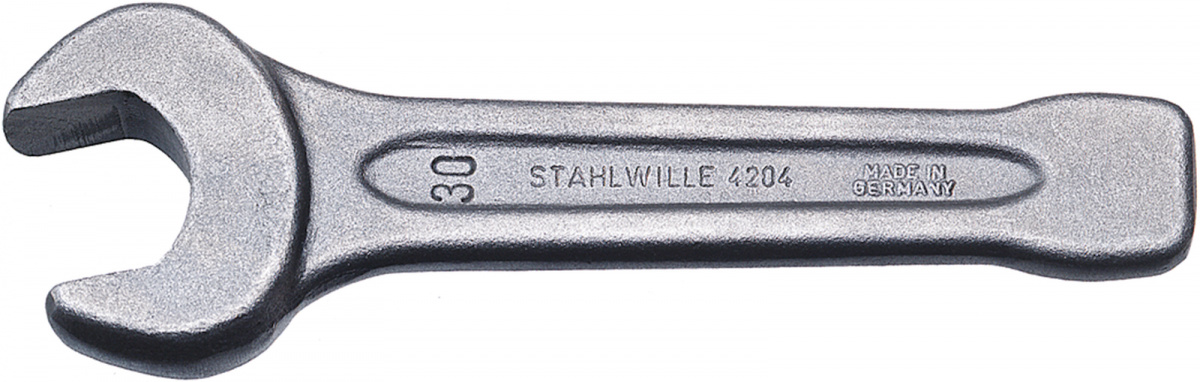

Úderový vidlicový klíč DIN 133, speciální ocel, ocelově edá barba.
Produktové číslo: 4204 100
Výrobce: Stahlwille
Specifikace
Varianty

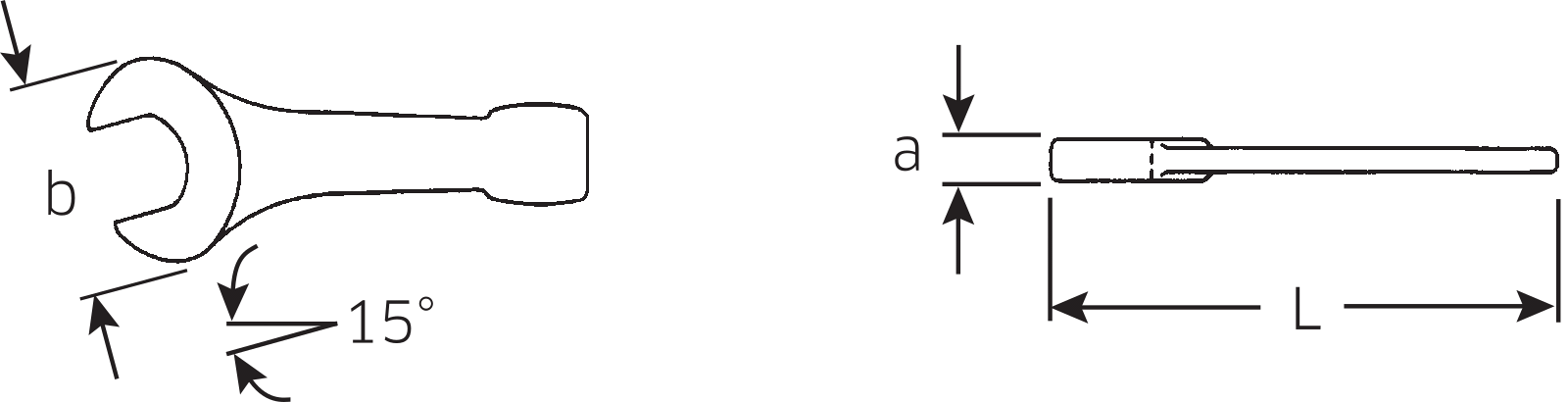

| Číslo | Skladem | A mm |
L mm |
b mm |
a mm |
S |
R g |
|
|---|---|---|---|---|---|---|---|---|
| 4204 27 | 0 | 27 | 180 | 56 | 16 | 1 | 321 |
|
| 4204 30 | 0 | 30 | 190 | 62 | 17 | 1 | 451 |
|
| 4204 32 | 0 | 32 | 190 | 62 | 17 | 1 | 424 |
|
| 4204 36 | 0 | 36 | 215 | 76 | 17,5 | 1 | 698 |
|
| 4204 41 | 0 | 41 | 235 | 86 | 18,5 | 1 | 923 |
|
| 4204 46 | 0 | 46 | 255 | 98 | 20 | 1 | 1245 |
|
| 4204 50 | 0 | 50 | 275 | 105 | 21 | 1 | 1445 |
|
| 4204 55 | 0 | 55 | 300 | 116 | 23 | 1 | 2057 |
|
| 4204 60 | 0 | 60 | 320 | 128 | 24,5 | 1 | 2559 |
|
| 4204 65 | 0 | 65 | 342 | 138 | 27 | 1 | 3285 |
|
| 4204 70 | 0 | 70 | 375 | 154 | 30 | 1 | 4573 |
|
| 4204 75 | 0 | 75 | 375 | 154 | 30 | 1 | 4163 |
|
| 4204 80 | 0 | 80 | 408 | 174 | 34 | 1 | 6059 |
|
| 4204 85 | 0 | 85 | 408 | 174 | 34 | 1 | 5871 |
|
| 4204 90 | 0 | 90 | 445 | 194 | 38 | 1 | 7600 |
|
| 4204 95 | 0 | 95 | 445 | 194 | 38 | 1 | 7600 |
|
| 4204 100 | 0 | 100 | 485 | 215 | 44 | 1 | 11500 |
|
| 4204 105 | 0 | 105 | 485 | 215 | 44 | 1 | 11200 |
|
