Popis produktu

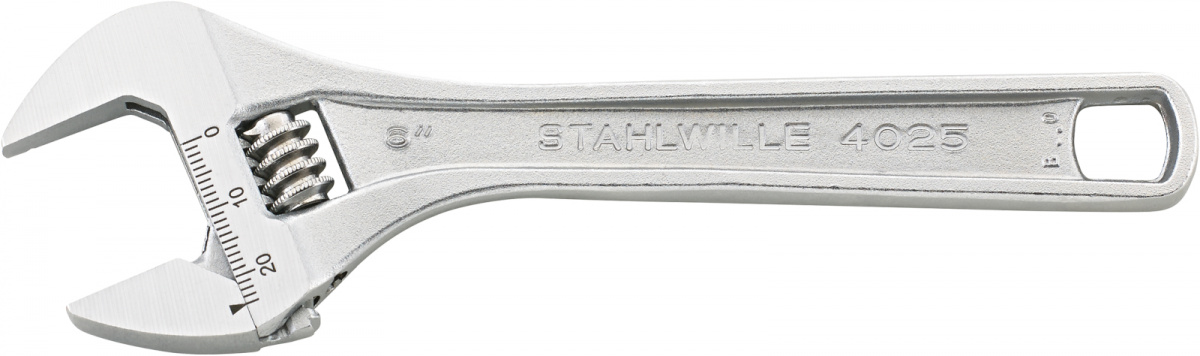

· right-handed · DIN 3117/ISO 6787 (B shape) · ASME B107.100 · jaw offset 22.5° · Chrome Vanadium, chrome plated
Produktové číslo: 4025 15
Výrobce: Stahlwille
Specifikace
Varianty
| Číslo | Skladem | Si ze |

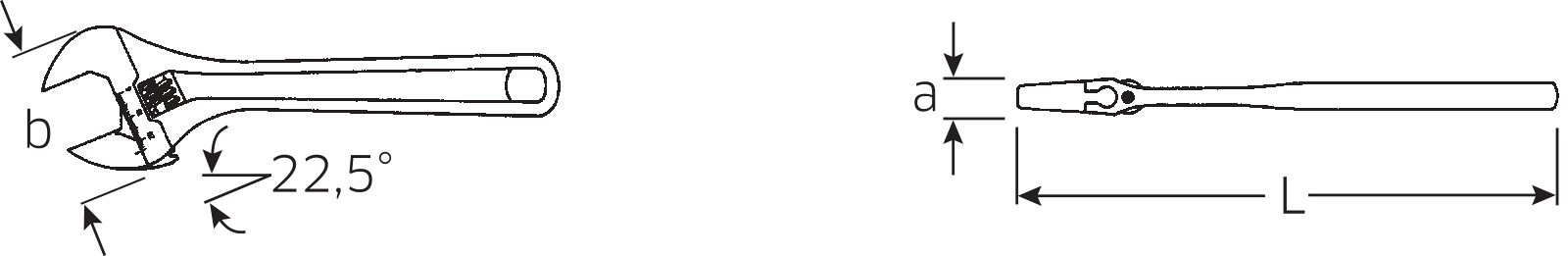

Weight | L (mm) | a | Offset angle | Max. spanner size | ||
|---|---|---|---|---|---|---|---|---|---|
| 4025 4 | 2 | 4 | 52 | 115 | 35 | 9,5 | 22 | 13 |
|
| 4025 6 | 0 | 6 | 155 | 161 | 50 | 10,8 | 22 | 24 |
|
| 4025 8 | 2 | 8 | 310 | 207 | 62 | 14 | 22 | 30 |
|
| 4025 10 | 0 | 10 | 490 | 259 | 74 | 15,8 | 22 | 34 |
|
| 4025 12 | 4 | 12 | 805 | 311 | 84 | 19 | 22 | 39 |
|
| 4025 15 | 0 | 15 | 1320 | 386 | 106 | 25 | 22 | 44 |
|
| 4025 18 | 0 | 18 | 2040 | 462 | 124 | 30 | 22 | 53 |
|
