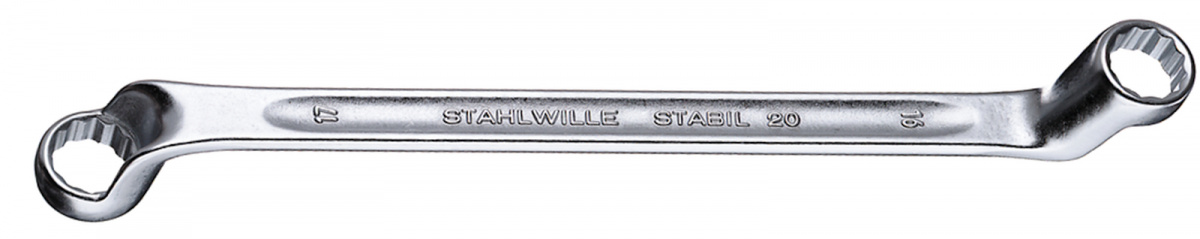

Oboustranný Očkoplochý klíč 11/16 x 13/16" 300mm
s DPH
776,- Kč
bez DPH
641,- Kč
Není skladem
Popis produktu
Dvoustranný očkový klíč Klíče StahlwilleSTABIL®, ohnuté, DIN 838/ISO 10104 (metrické), chromem legovaná ocel, chromovaná
Produktové číslo: 20 A 11/16 X 13/16
Výrobce: Stahlwille
Specifikace
Varianty

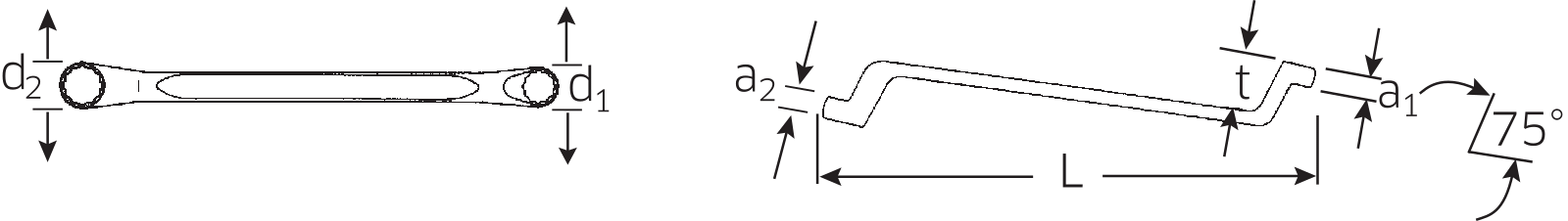

| Číslo | Skladem | A " |
L mm |
d1 mm |
d2 mm |
a1 mm |
a2 mm |
t mm |
S |
R g |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 A 1/4 X 5/16 | 0 | 1/4 x 5/16 | 180 | 11,8 | 13,1 | 7 | 7 | 20 | 10 | 61 |
|
| 20 A 3/8 X 7/16 | 0 | 3/8 x 7/16 | 200 | 15,8 | 17,2 | 9 | 9 | 23 | 10 | 88 |
|
| 20A 1/2X9/16 | 0 | 1/2 x 9/16 | 220 | 20 | 21,3 | 9 | 10 | 25 | 10 | 131 |
|
| 20 A 9/16 X 5/8 | 0 | 9/16 x 5/8 | 245 | 21,3 | 25,3 | 10 | 12 | 27 | 10 | 168 |
|
| 20 A 19/32 X 11/16 | 0 | 19/32 x 11/16 | 255 | 23,9 | 25,3 | 11 | 12 | 27 | 10 | 177 |
|
| 20 A 5/8 X 3/4 | 0 | 5/8 x 3/4 | 270 | 23,9 | 28 | 12 | 13 | 29 | 10 | 235 |
|
| 20 A 11/16 X 13/16 | 0 | 11/16 x 13/16 | 300 | 25,3 | 30,7 | 12 | 13 | 31 | 5 | 280 |
|
| 20 A 3/4 X 7/8 | 0 | 3/4 x 7/8 | 300 | 28 | 32,1 | 13 | 14 | 31 | 5 | 299 |
|
| 20 A 25/32 X 13/16 | 0 | 25/32 x 13/16 | 300 | 29,4 | 32,1 | 13 | 14 | 31 | 5 | 333 |
|
| 20 A 7/8 X 15/16 | 0 | 7/8 x 15/16 | 330 | 32,1 | 34,7 | 14 | 14 | 34 | 5 | 363 |
|
| 20 A 15/16 X 1 | 0 | 15/16 x 1 | 330 | 34,7 | 37,3 | 14 | 15 | 34 | 5 | 419 |
|
| 20 A 1 1/8 X 1 5/16 | 0 | 1 1/8 x 1 5/16 | 365 | 42,6 | 45,4 | 15 | 16 | 37 | 1 | 581 |
|
