Popis produktu

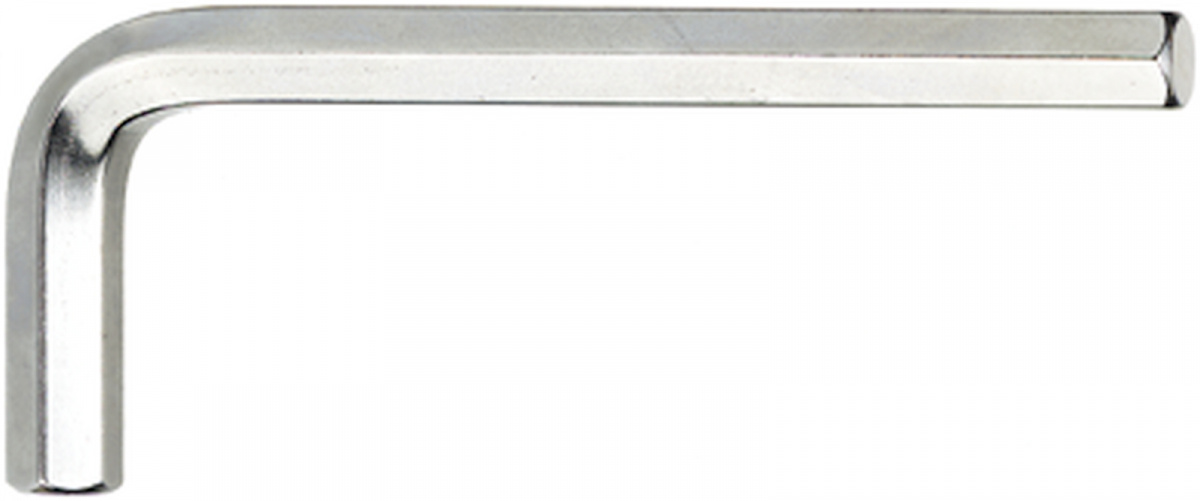

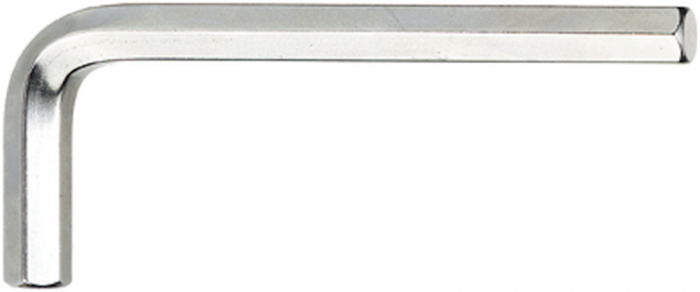

Úhlový šroubovák, pravoúhlý DIN ISO 2936 (metrický), pro šrouby s vnitřním šestihranem, chrom-vanad, poniklovaný (veliskoti: 0,7; 0,9; 1,3 mm černěné).
Produktové číslo: 10760/CV 2
Výrobce: Stahlwille
Specifikace
Varianty

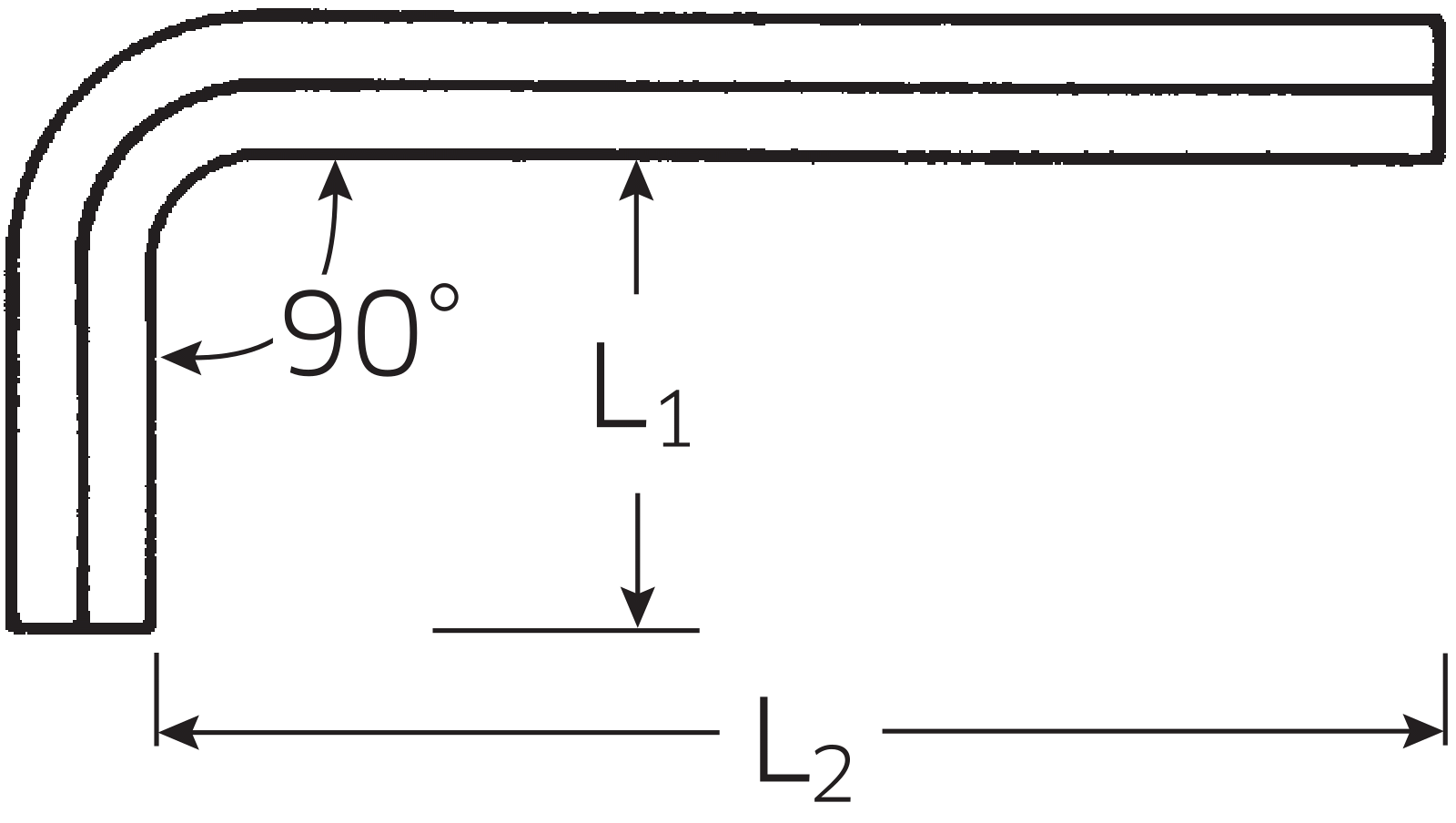

| Číslo | Skladem | B mm |
L1 mm |
L2 mm |
R g |
S |
|
|---|---|---|---|---|---|---|---|
| 10760/CV 2 | 3 | 2 | 16 | 50 | 2 | 10 |
|
| 10760 CV 3 | 0 | 3 | 20 | 63 | 4 | 10 |
|
| 10760 CV 4 | 0 | 4 | 25 | 70 | 10 | 10 |
|
| 10760 CV 5 | 0 | 5 | 28 | 80 | 18 | 10 |
|
| 10760 CV 6 | 0 | 6 | 32 | 90 | 29 | 10 |
|
| 10760/CV 7 | 3 | 7 | 34 | 95 | 42 | 10 |
|
| 10760 CV 8 | 0 | 8 | 36 | 100 | 59 | 10 |
|
| 10760/CV 9 | 6 | 9 | 38 | 105 | 80 | 10 |
|
| 10760CV 10 | 0 | 10 | 40 | 112 | 103 | 10 |
|
| 10760/CV 11 | 2 | 11 | 42 | 119 | 130 | 10 |
|
| 10760/CV 12 | 2 | 12 | 45 | 125 | 169 | 5 |
|
| 10760 CV 14 | 0 | 14 | 56 | 140 | 261 | 5 |
|
| 10760 CV 17 | 0 | 17 | 63 | 160 | 442 | 5 |
|
| 10760 CV 19 | 0 | 19 | 70 | 180 | 603 | 5 |
|
| 10760 CV 22 | 0 | 22 | 80 | 200 | 938 | 1 |
|
| 10760 CV 24 | 0 | 24 | 90 | 224 | 1248 | 1 |
|
| 10760 CV 27 | 0 | 27 | 100 | 250 | 1692 | 1 |
|
| 10760 CV 30 | 0 | 30 | 112 | 280 | 2434 | 1 |
|
| 10760 CV 32 | 0 | 32 | 125 | 315 | 3117 | 1 |
|
| 10760 CV 36 | 0 | 36 | 140 | 355 | 4430 | 1 |
|
| 10760/CV 1,5 | 2 | 1,5 | 14 | 45 | 1 | 10 |
|
| 10760/CV 2,5 | 5 | 2,5 | 18 | 56 | 3 | 10 |
|
| 10760 CV 3,5 | 0 | 3,5 | 22 | 66 | 7 | 10 |
|
