Popis produktu
Úhlový roubovák, pravoúhlý
Produktové číslo: 10760 ACV 3/32
Výrobce: Stahlwille
Specifikace
Varianty

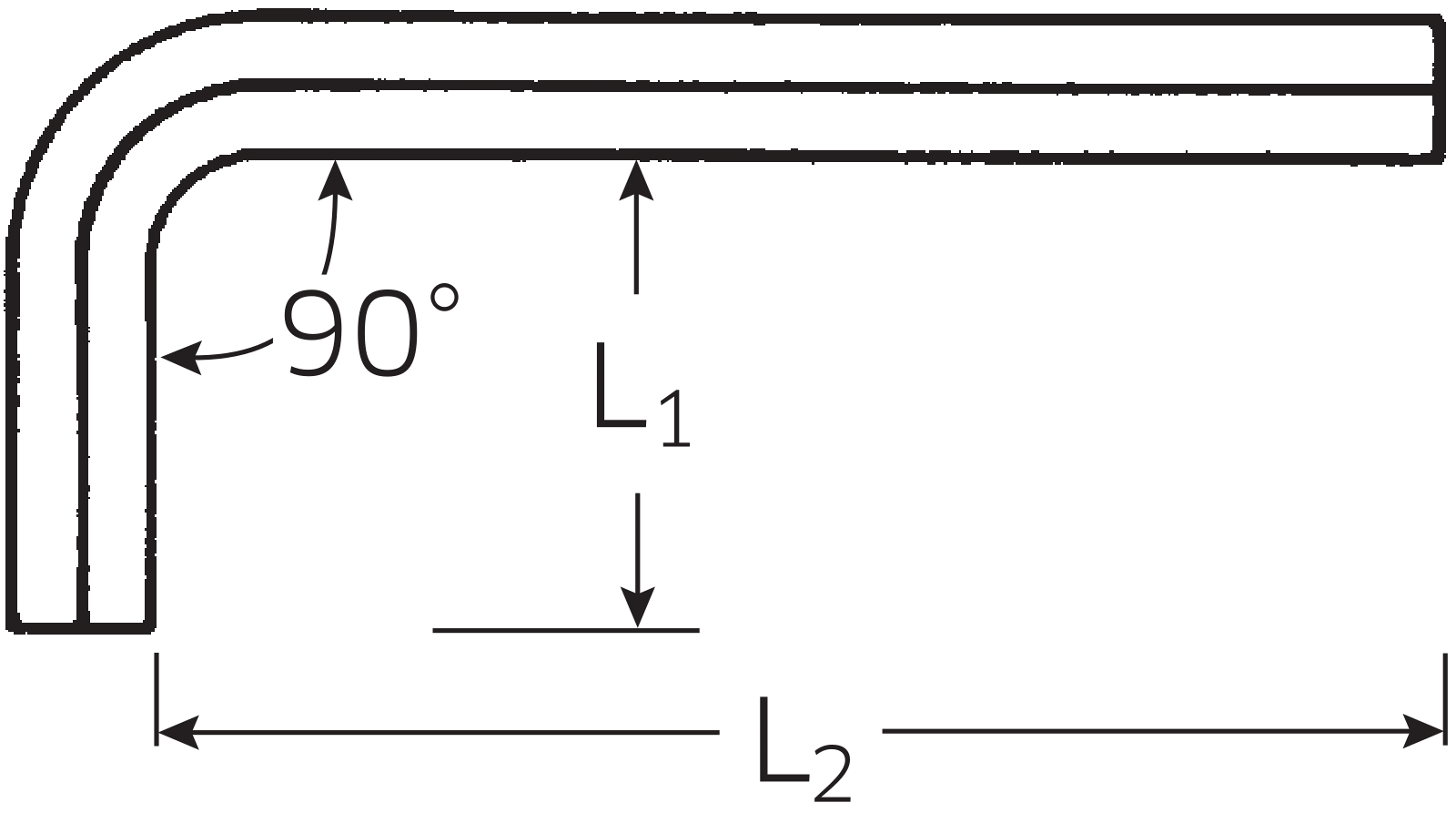

| Číslo | Skladem | B " |
L1 mm |
L2 mm |
R g |
S |
|
|---|---|---|---|---|---|---|---|
| 10760 CV 0,7MM 0,028" | 0 | - | 8 | 32 | 1 | 10 |
|
| 10760 CV 0,9MM 0,035" | 0 | - | 10 | 32 | 1 | 10 |
|
| 10760 CV 1,3MM 0,050" | 0 | - | 12 | 40 | 1 | 10 |
|
| 10760 ACV 3/64 | 0 | 3/64 | 14 | 45 | 1 | 10 |
|
| 10760 ACV 1/16 | 0 | 1/16 | 15 | 45 | 1 | 10 |
|
| 10760 ACV 5/64 | 0 | 5/64 | 16 | 50 | 2 | 10 |
|
| 10760 ACV 3/32 | 0 | 3/32 | 17 | 51 | 3 | 10 |
|
| 10760 ACV 7/64 | 0 | 7/64 | 20 | 54 | 4 | 10 |
|
| 10760 ACV 1/8 | 0 | 1/8 | 22 | 57 | 5 | 10 |
|
| 10760 ACV 9/64 | 0 | 9/64 | 23 | 63 | 7 | 10 |
|
| 10760 ACV 5/32 | 0 | 5/32 | 25 | 65 | 10 | 10 |
|
| 10760 ACV 3/16 | 0 | 3/16 | 29 | 70 | 15 | 10 |
|
| 10760 ACV 7/32 | 0 | 7/32 | 32 | 80 | 23 | 10 |
|
| 10760 ACV 1/4 | 0 | 1/4 | 32 | 87 | 32 | 10 |
|
| 10760 ACV 9/32 | 0 | 9/32 | 35 | 95 | 45 | 10 |
|
| 10760 ACV 5/16 | 0 | 5/16 | 40 | 98 | 59 | 10 |
|
| 10760 ACV 11/32 | 0 | 11/32 | 41 | 105 | 75 | 10 |
|
| 10760 ACV 3/8 | 0 | 3/8 | 45 | 110 | 95 | 10 |
|
| 10760 ACV 7/16 | 0 | 7/16 | 48 | 124 | 143 | 10 |
|
| 10760 ACV 1/2 | 0 | 1/2 | 50 | 133 | 201 | 5 |
|
| 10760 ACV 9/16 | 0 | 9/16 | 57 | 152 | 292 | 5 |
|
| 10760 ACV 5/8 | 0 | 5/8 | 59 | 160 | 380 | 5 |
|
| 10760 ACV 3/4 | 0 | 3/4 | 70 | 180 | 605 | 5 |
|
| 10760 ACV 7/8 | 0 | 7/8 | 80 | 200 | 945 | 1 |
|
