Oboustranný Očkoplochý klíč MOTOR 11/16 x 13/16" 235mm
s DPH
410,- Kč
bez DPH
339,- Kč
Není skladem
Popis produktu
Dvoustranný vidlicový klíč, MOTOR DIN 3110, ISO 10102 (metrický), chromem legovaná ocel, chromovaný.
Produktové číslo: 10 A 11/16 X 13/16
Výrobce: Stahlwille
Specifikace
Varianty

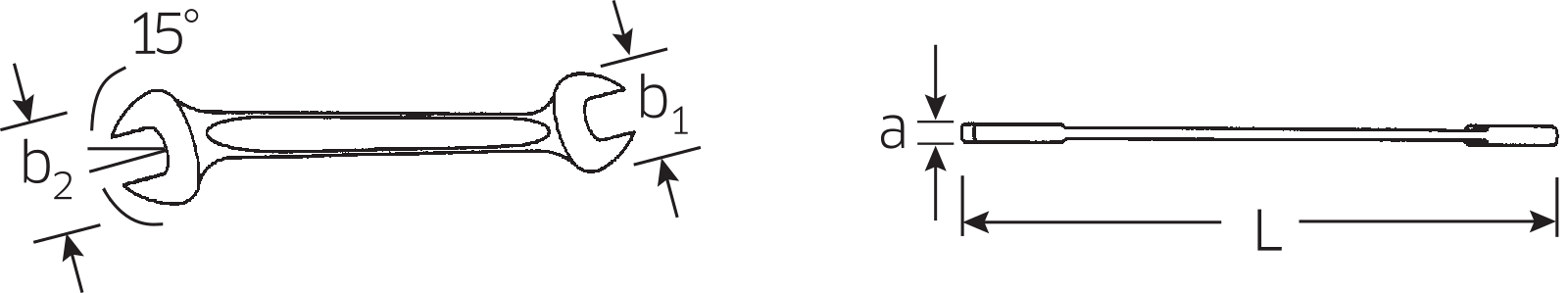

| Číslo | Skladem | A " |
L mm |
b1 mm |
b2 mm |
a mm |
S |
R g |
|
|---|---|---|---|---|---|---|---|---|---|
| 10 A 1/4 X 5/16 | 0 | 1/4 x 5/16 | 140 | 16 | 18 | 4 | 10 | 21 |
|
| 10 A 5/16 X 3/8 | 0 | 5/16 x 3/8 | 140 | 18 | 23 | 4,5 | 10 | 34 |
|
| 10 A 3/8 X 7/16 | 0 | 3/8 x 7/16 | 155 | 23 | 26 | 4,8 | 10 | 48 |
|
| 10A 7/16X1/2 | 0 | 7/16 x 1/2 | 170 | 26 | 30 | 5,3 | 10 | 58 |
|
| 10 A 1/2 X 9/16 | 0 | 1/2 x 9/16 | 190 | 30 | 32 | 5,3 | 10 | 73 |
|
| 10 A 9/16 X 5/8 | 0 | 9/16 x 5/8 | 205 | 32 | 36 | 5,8 | 10 | 96 |
|
| 10 A 19/32 X 11/16 | 0 | 19/32 x 11/16 | 205 | 35 | 40 | 5,8 | 10 | 105 |
|
| 10 A 5/8 X 11/16 | 0 | 5/8 x 11/16 | 205 | 36 | 40 | 5,8 | 10 | 101 |
|
| 10 A 5/8 X 3/4 | 0 | 5/8 x 3/4 | 220 | 36 | 42 | 6,7 | 10 | 135 |
|
| 10 A 11/16 X 3/4 | 0 | 11/16 x 3/4 | 220 | 40 | 42 | 6,7 | 10 | 135 |
|
| 10 A 11/16 X 13/16 | 0 | 11/16 x 13/16 | 235 | 40 | 47 | 7,3 | 10 | 167 |
|
| 10 A 3/4 X 7/8 | 0 | 3/4 x 7/8 | 235 | 42 | 49 | 7,3 | 10 | 177 |
|
| 10 A 25/32 X 13/16 | 0 | 25/32 x 13/16 | 235 | 45 | 47 | 7,3 | 10 | 190 |
|
| 10 A 7/8 X 15/16 | 0 | 7/8 x 15/16 | 250 | 49 | 53 | 7,8 | 10 | 235 |
|
| 10 A 15/16 X 1 | 0 | 15/16 x 1 | 270 | 53 | 55 | 8,3 | 5 | 303 |
|
| 10A 1 1/8X 1 5/16 | 0 | 1 1/8 x 1 5/16 | 300 | 64 | 75 | 9,4 | 5 | 502 |
|
