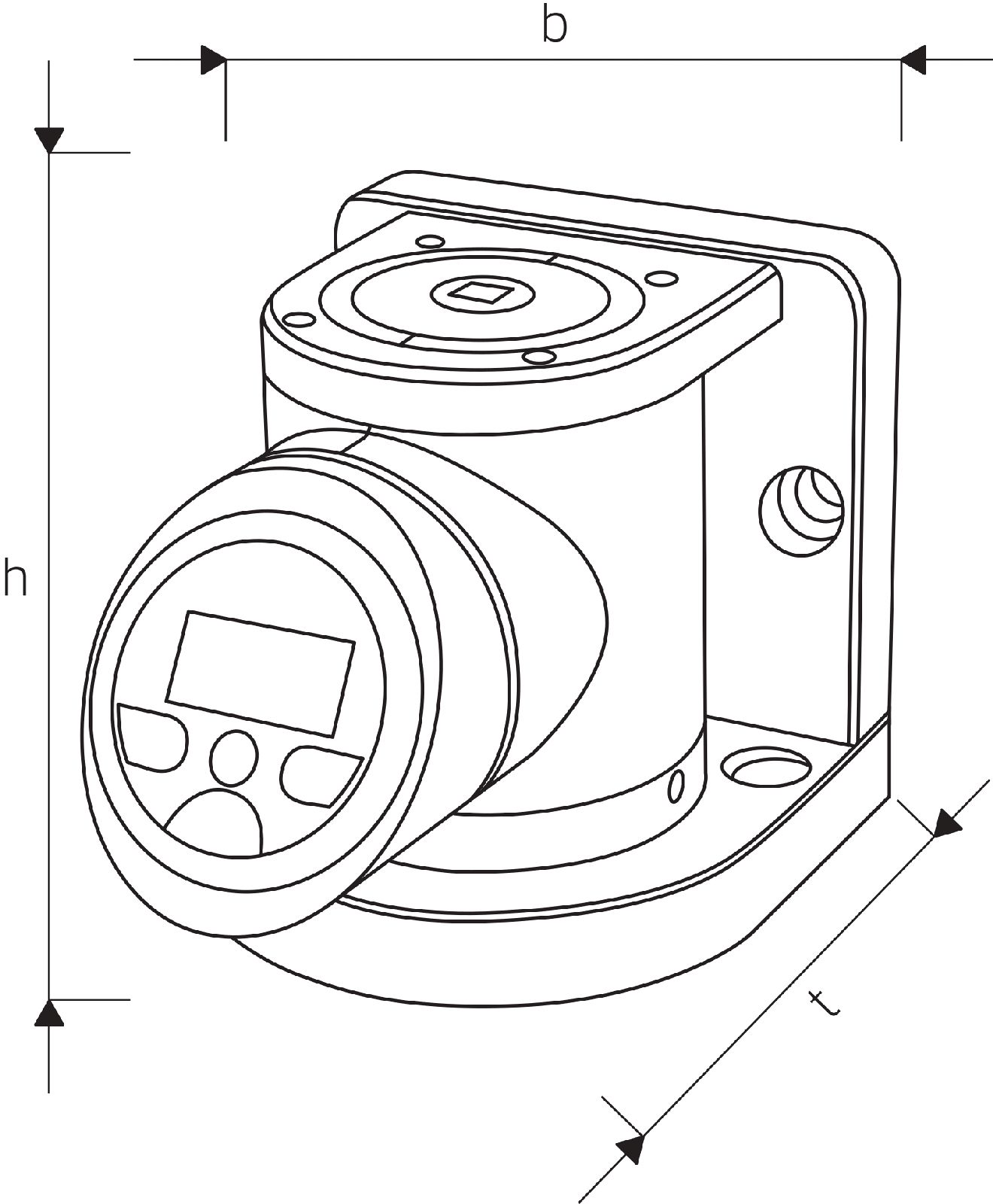

Číslo | Skladem | Č. | RozsahN·m | Rozsahft·l | Rozsahin·l | a " |
b mm |
h mm |
t mm |
R g |
|
---|---|---|---|---|---|---|---|---|---|---|---|
SMARTCHECK 10S | 0 | SmartCheck 10S* | 1-10 | 0,74-7,4 | 8,9-88,5 | 1/4 | 120 | 124 | 167 | 5210 |
|
SMARTCHECK 10 | 0 | SmartCheck 10 | 1-10 | 0,74-7,4 | 8,9-88,5 | 1/4 | 120 | 124 | 167 | 5210 |
|

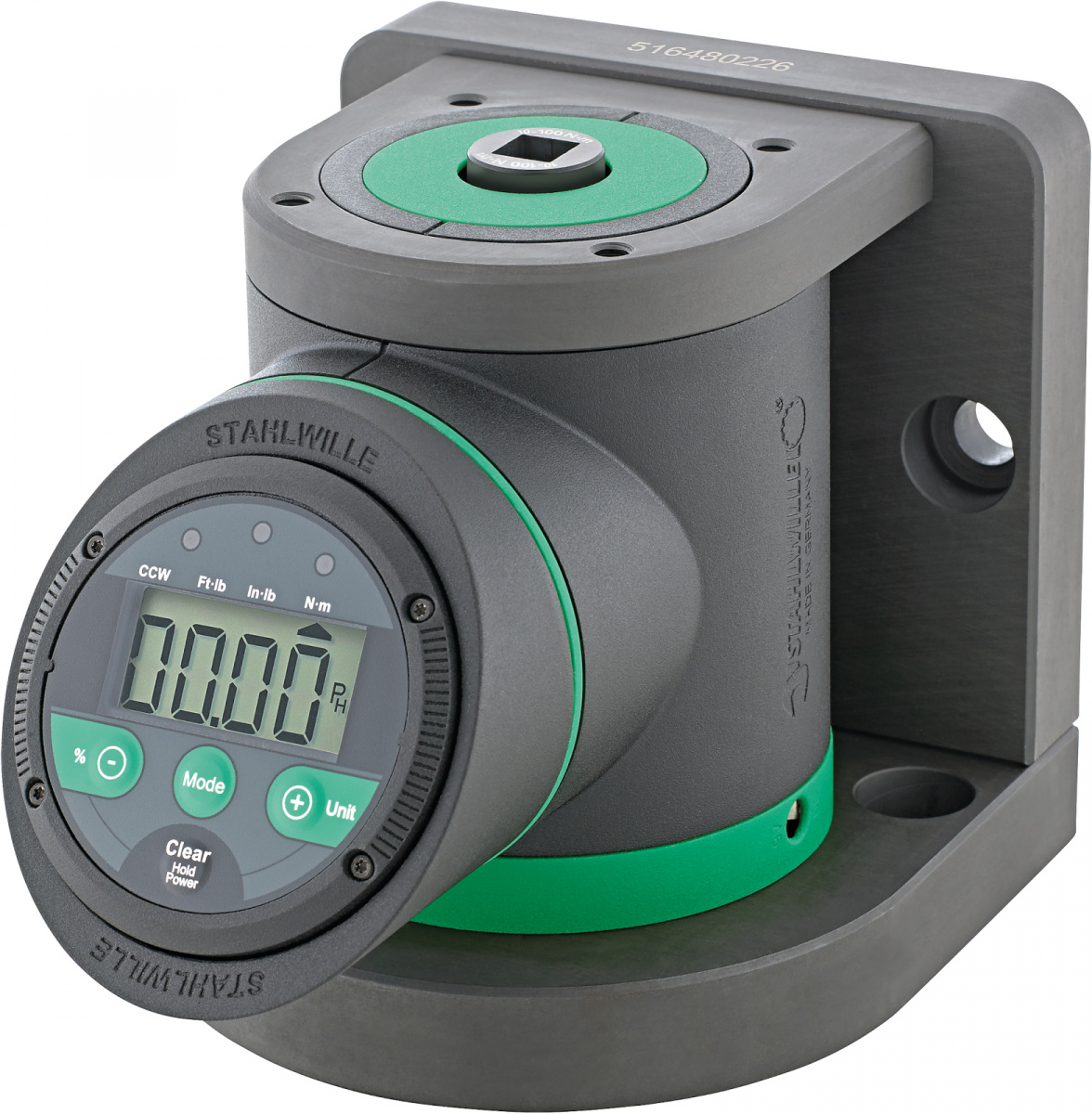

00 SMARTCHECK 100 | 1 | SmartCheck 100 | 10-100 | 7-74 | 89-885 | 3/8 | 120 | 124 | 167 | 5310 |
|
00 SMARTCHECK 400 | 0 | SmartCheck 400 | 40-400 | 30-295 | 354-3540 | 3/4 | 120 | 124 | 167 | 5690 |
|
00 SMARTCHECK 800 | 1 | SmartCheck 800 | 80-800 | 59-590 | 708-7081 | 3/4 | 120 | 124 | 167 | 5690 |
|
